Working principle:
1. DPL
The DPL utilizes narrow width Intense Pulsed Light technology, specifically designed to target hair follicles. It works by emitting intense pulses of light with a pure wavelength that effectively damages the hair follicles and prevents hair regrowth. In addition to hair removal, the DPL Beauty Machine can also be used for skin tightening, rejuvenation, wrinkle reduction, pigment removal, and various other beauty treatments.
2. Picosecond laser
Picosecond Laser Tattoo Removal Machine utilizes picosecond laser pulses to fragment tattoo ink particles through a photomechanical effect. These fragmented particles are then metabolized and cleared by the body’s lymphatic system. The process is safe, comfortable, and requires multiple treatments to achieve optimal results.
3. RF
RF works by utilizing RF technology to heat the skin and stimulate the production of new collagen. This process tightens and lifts the skin, reducing the appearance of fine lines and wrinkles. The treatment is non-invasive and suitable for all skin types, providing a safe and convenient option for individuals seeking to improve their skin tone and texture.
| Parameter Category | Detailed Description |
| Device Model | 4 in 1 DPL RF Picosecond laser beauty machine |
| Technologies | 1. DPL (Narrow Pulse Intense Pulsed Light) |
| 2. RF (Radio Frequency) | |
| 3. Picosecond Laser | |
| Wavelength | 1. IPL: 480/530/640-1200nm (Multi-wavelength selectable) |
| 2. Picosecond Laser: 1064nm., 755nm, 532nm | |
| Energy Density | 1. IPL: 1-50J/cm² |
| 2. Picosecond Laser: 10~2000mj | |
| Frequency | 1. IPL: 1-10Hz |
| 2. RF: 1MHz | |
| 3. Picosecond Laser:1 – 10Hz | |
| Pulse Duration | 1. IPL: 1-10ms |
| 2. Picosecond Laser: 600ps (Picosecond-level) | |
| Spot Size | 1. IPL/Elight: 1550mm² or 1230mm² |
| 2. Picosecond Laser: 2-10mm (Depends on specific model) | |
| Cooling System | Air cooling + water cooling + semiconductor refrigeration (to ensure stable operation for a long time) |
| Display | 10.0-inch touch screen (for easy operation and viewing) |
| Electrical Requirements | AC100-240V, 50/60Hz (Universal voltage) |
| Packaging & Shipping | Aluminum alloy box or wooden box, dimensions and weight depend on specific configuration |
| Gross Weight | Depends on specific configuration, typically around 80-120kg |
| Functions | Suitable for various beauty treatments such as tattoo removal, hair removal, skin rejuvenation, spot removal, wrinkle removal, etc. |
-
Applications:
Hair removal
Tattoo removal
Skin rejuvenation
pigment removal
face lifting
wrinkle removal etc

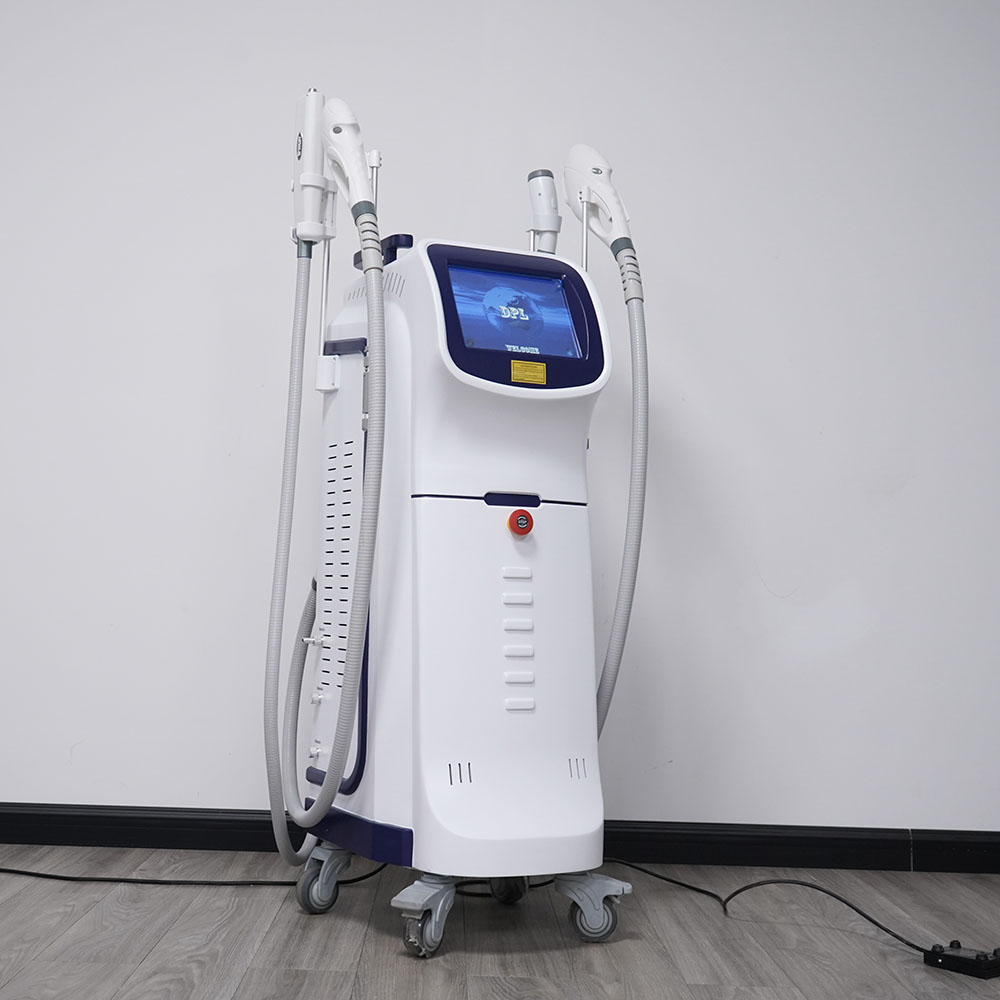

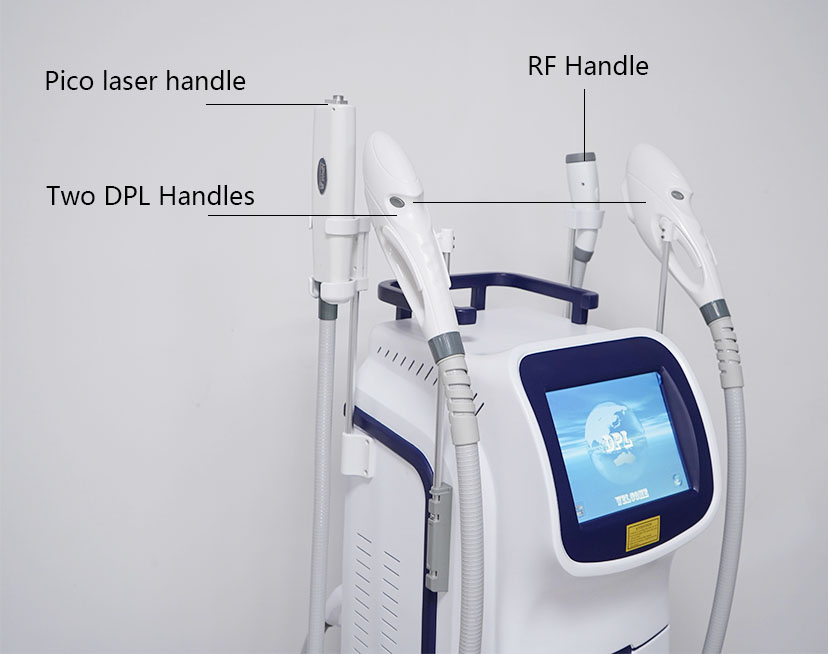

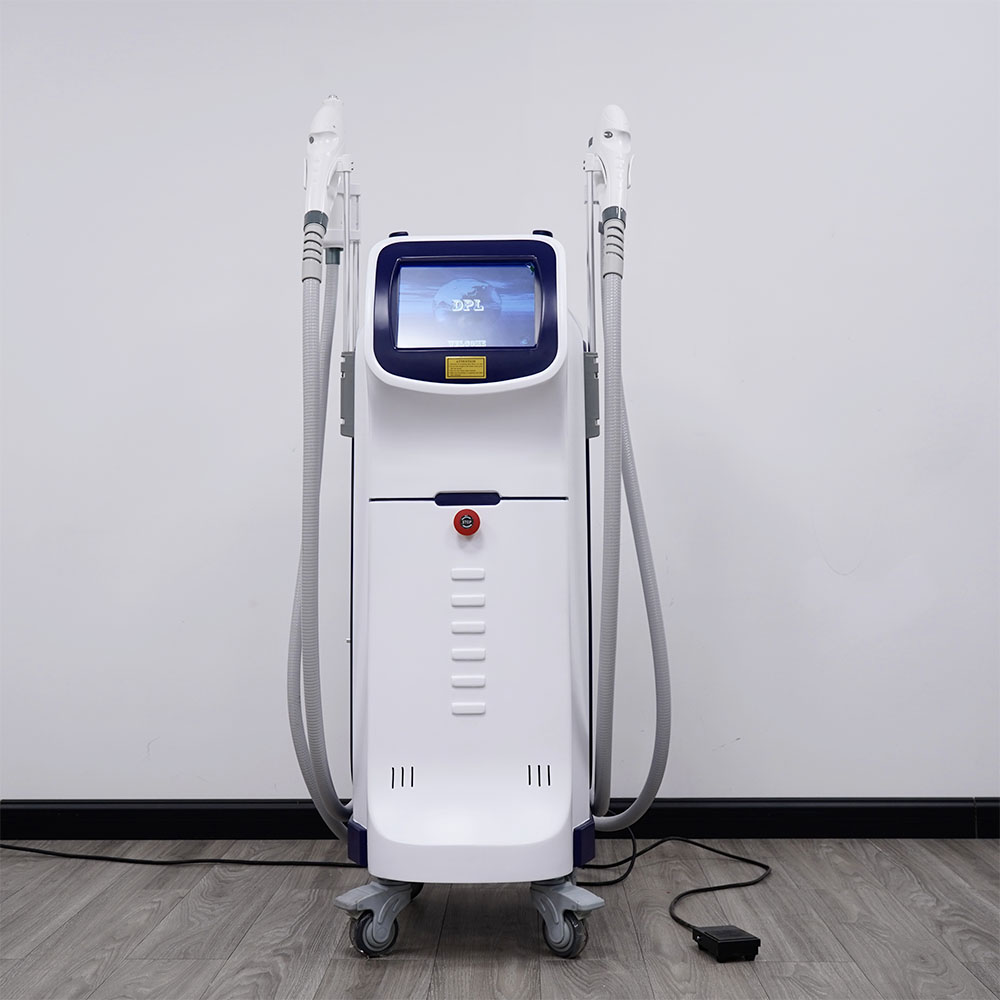

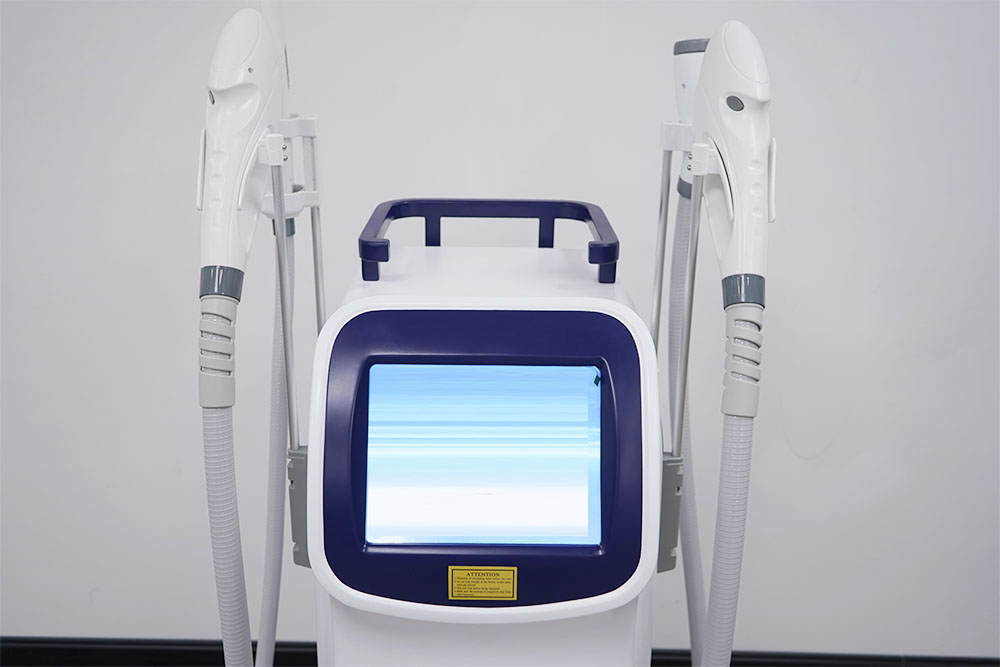

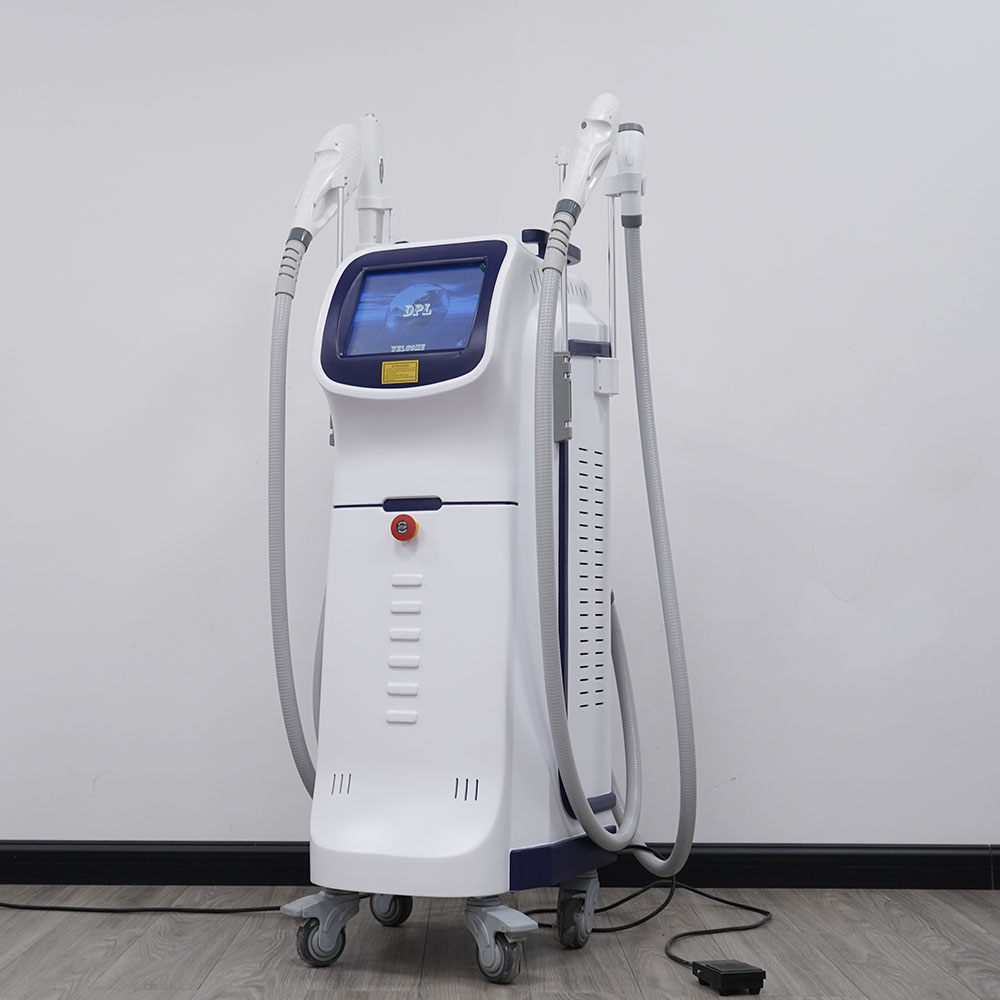

Product Display
